XLPE Insulated Power Cable

10awg 12awg electrical power cable XLPE 2.5mm2 4mm2 6mm2 10mm2 PV DC wire single cable

Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.

Send Enquiry

SURXiN 10awg 12awg electrical power cable XLPE 6mm2 10mm2 16mm2 25mm2 PV DC wire single dual slocable tinned copper wire solar cable

Technical Parameters

Product Paramenters
Corss Cection (mm²)Conductor Construction

(n/mm)

Conductor Stranded

OD.(mm)

Cable OD.(mm)Conductor Max.Resistance

AT 20°C(Ω/km)

Current Carring Capacity

AT 60°C(A)

1.530/0.251.584.8013.525
2.549/0.251.985.308.2136
456/0.2852.355.905.0944
684/0.2853.066.503.3960
1080/0.44.607.501.9582
16126/0.45.60101.24122
25196/0.46.95120.795160
Product Specification:
Product namesolar cable
Conductor Materialcopper
Rated voltage1500 VDC
CoreSingle Core,Double Core,or Multi Core
ColorRed,Black
Jacket MaterialXLPE
Temperature range-40℃~90℃
Application

Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions.
Solar power system, PV,solar eara.

Advantage
  • Dual wall insulation.Electron beam cross-linked
  • Excellent resistance to U.V,oil,greases,oxygen and ozone
  • Excellent resistance to abrasion
  • Halogen free, flame retardant,low toxicity
  • Excellent flexibility and stripping performance
  • High Voltage and Current carring capacity

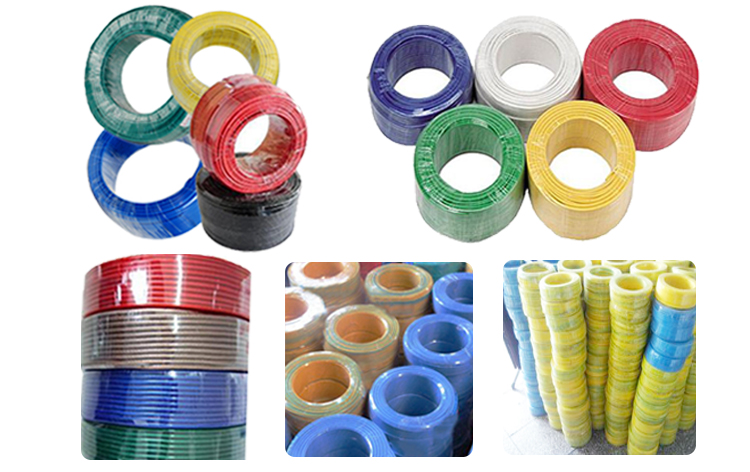

Related Package

10awg 12awg electrical power cable XLPE 6mm2 10mm2 16mm2 25mm2 PV DC wire single dual slocable tinned copper wire solar cable
